The Smart Gravitas Range of machines are controlled via the control panel mounted to the top stem, from this control panel the use can configure the draw settings. Once the draw is initiated, the balls will be mechanically mixed in the chamber, after the selected amount of time, the ‘winning’ ball/s will be ejected from the chamber using Smart™ Infrared Collection technology. The ejected ball/s will then roll down the winning chute and rest once they reach end. The ‘winning’ numbers will be shown clearly on the TV rolling down the chute & rested (if this option is selected).

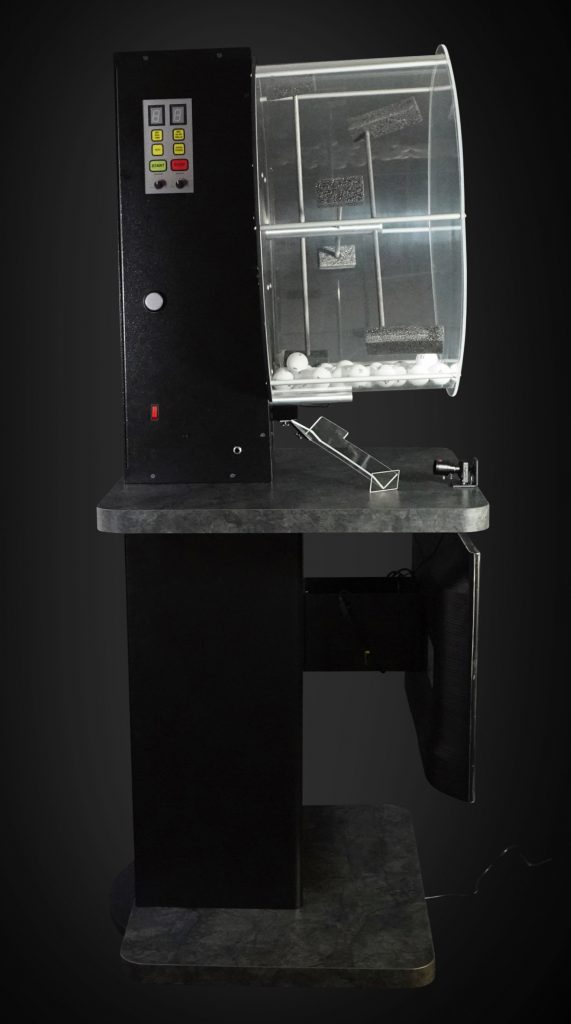

• The control panel is connected to 2 LCD Figure 8 displays for a user-friendly experience.
• The unit allows the drawing sequence to be customised to suit your needs, the operator has the ability to: adjust the run time of the draw and dispensing mix, select the desired number of dispensed balls, adjust the speed of the mixing paddles during the main and dispensing mix independently of each other.
• Other features include the ability to run a test draw, purge (empty) the drum, initiate and stop draws.
• The machine will save the settings that have been configured even after it is powered off. So there is no need to keep configure the machine once you have found the settings to suit your draw.

• Smart Infra-Red Collection Technology, market innovating technology to guarantee reliability, the collection chamber will not close until an ejected ball has been sensed.
• Adjustable Live View Camera & TV: HD Camera on adjustable mount, Vari Focal Zoom Lens to allow 1,2,3,4 and 5 balls to be shown on the TV.
• Loading: The machine is loaded via the Smart™ Loading Funnel located on the rear panel of the chamber.
• Display capacity: The display chute has a total capacity of 5 balls. The number of balls to be dispensed can be adjusted through the control panel.

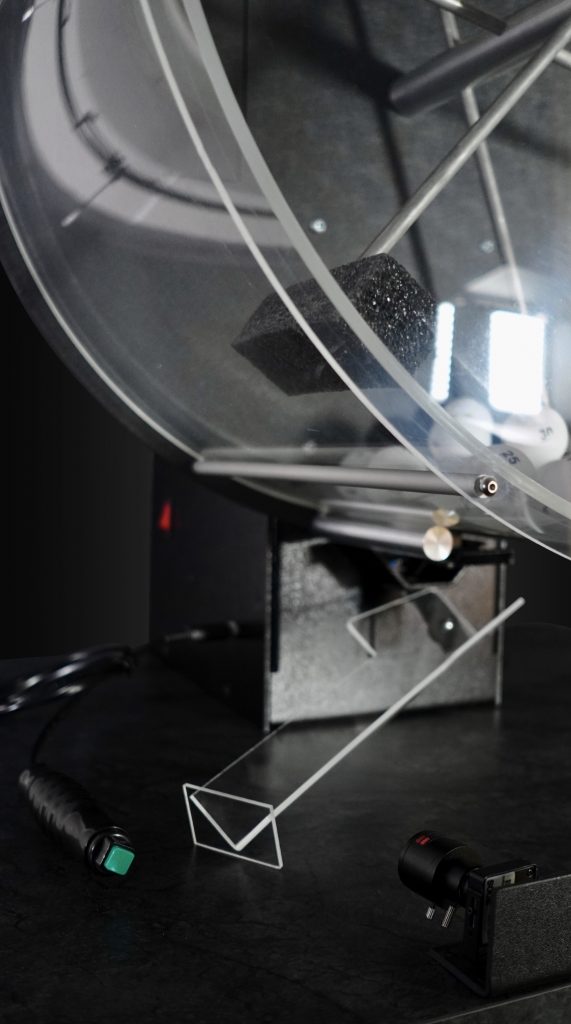

• Plunger: A detachable plunger connected to the machine allows the presenter to operate the draw whilst engaging with the audience.
• The Smart Gravitas range has been designed to be able to be dismantled and reassembled for ease of transport and storage. It is set on 4 heavy duty wheels allowing hassle-free movement.

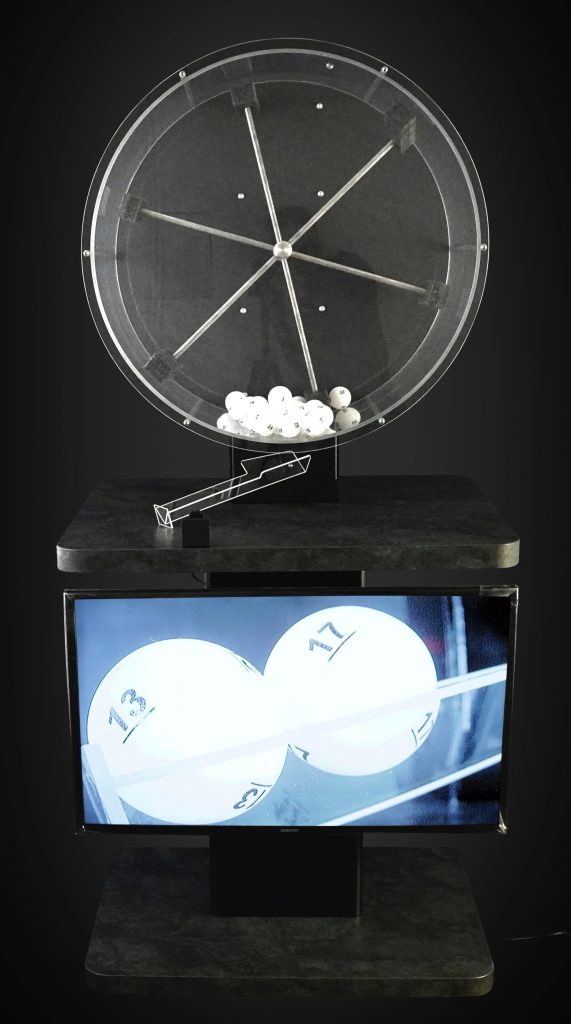

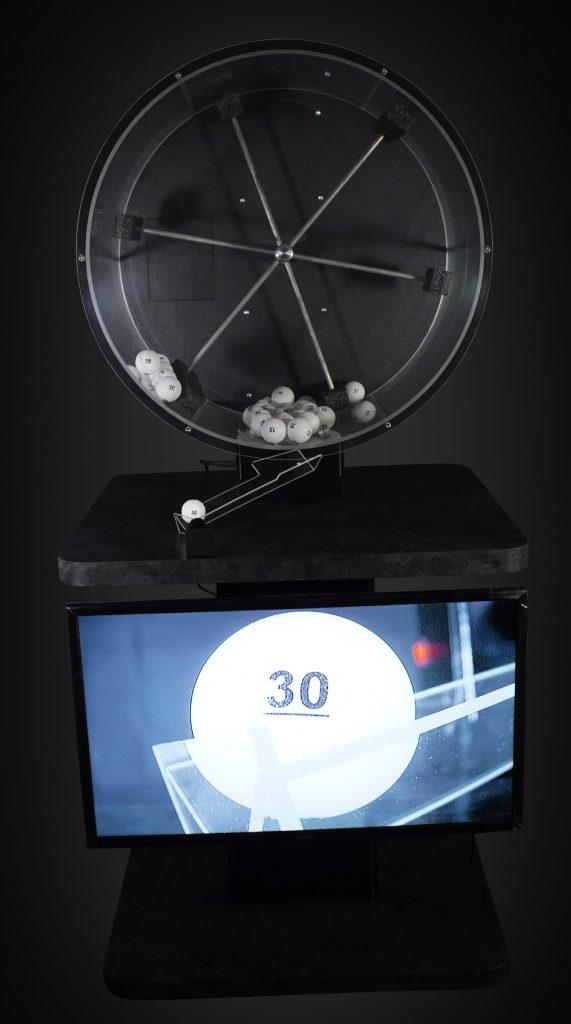

The Smart Gravitas Range of machines are available with the optional TV and Camera that ensures an engaging drawing experience. Providing not only excitement, but also transparency to the draw, we think this a must have extra for your machine! The Sony 32″ HD TV and AHD Live-Feed Camera provide spectacular close-up viewing of the ‘winning’ numbers.

• Load capacity: The Smart Gravitas Machine is available in 100, 500 & 1500 chamber capacities (40mm diameter ball).
• These machines work extremely well in a pair, for example, the 100-Capacity Machine loaded with the balls A-Z, and the 500 Capacity Machine, allows for up to (26 x 500) = 13,000 possible combinations to be dispensed.

SGR 100:

Unboxed: 50 x 150 x 40cm. Weight: 30kg (W x H x D)

Boxed: 60 x 85 x 50cm (x2 Pieces)

SGR 500:

Unboxed: 70 x 170 x 60cm. Weight: 50kg (W x H x D)

Boxed: 80 x 95 x 70cm (x2 Pieces)

SGR 1500:

Unboxed: 90 x 180 x 80cm. Weight: 60kg (W x H x D)

Boxed: 100 x 100 x 90cm (x2 Pieces)

The external structure is manufactured from Black Mild Steel, assuring precision, robustness and aesthetics. The mixing chamber is produced from Moulded Acrylic or Poly (Methyl Methacrylate) to provide a crystal clear viewing experience. The main display top and base has been produced from high-quality post formed Duropal Worktops.
